Model: AF-987

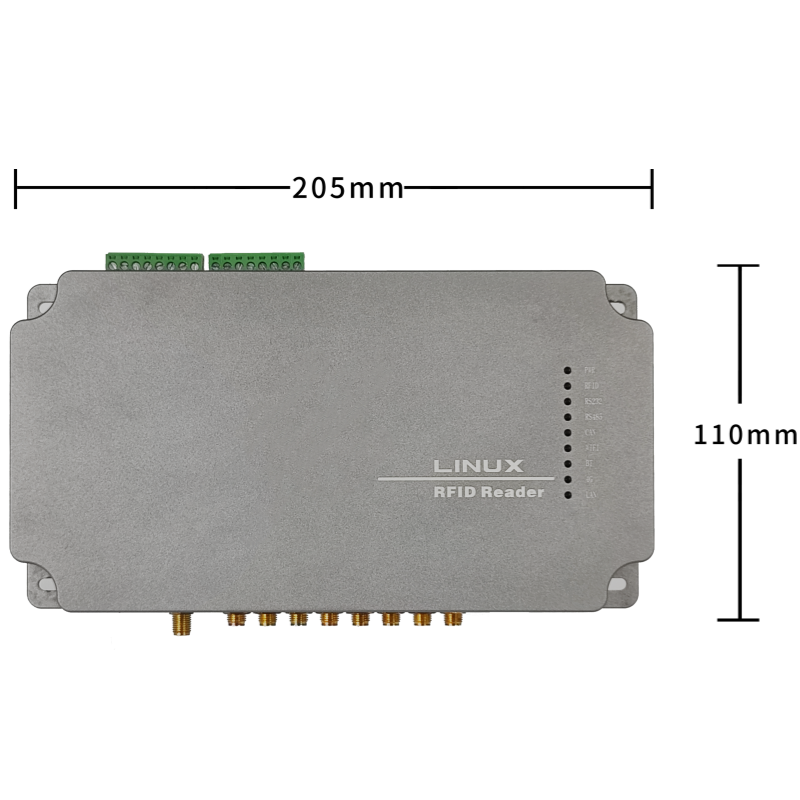

8-Port Linux UHF RFID Fixed Reader AF-987
$280.50 330.00
暂无数据
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. The shell is made of high-strength aluminum alloy CNC, which is sturdy and beautiful. The PCB board is designed with high-density 6-layer board (sunken gold);
2. Adopting Impinj's high-performance E710/Indy R2000 dedicated UHF RFID chip, it has excellent stability and strong multi tag long-distance recognition performance;
3. Adopting ATMEL AT91SAM9260 CPU, ARM926EJ-S core processor, with a main frequency of 200MHz;
4.32MB SDRAM, FLASH storage, 128M * 8bits NandFlash (K9F1G08U0B) can be replaced with larger capacity according to customer requirements;
5. Operating system support, Linux 2.6.30;
6. Standard interfaces RS232, RS485, TCP/IP; optional interface functions: Wigand 34, 26, CAN bus, WIFI, Bluetooth, GPRS (3G/4G);

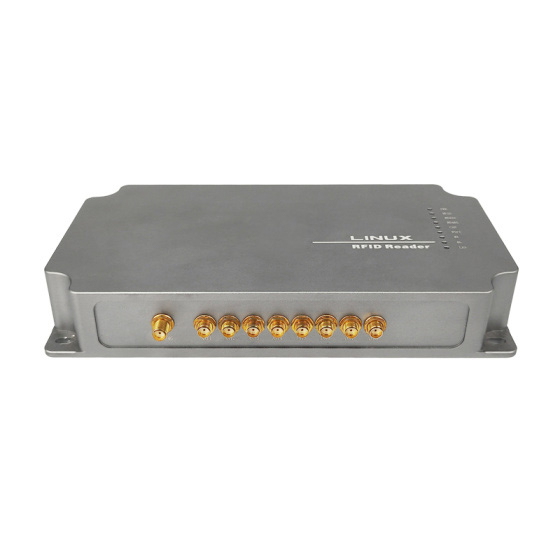

7. Supports 4 or 8 external SMA antenna interfaces.
Detail
|
Model |
AF-987 |
|
Performance parameters |
|
|
Frequency |
920-928MHz or 865-868MHz (adjustable depending on country or region) |
|
Supported Area |
US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan、Korea、Malaysia、Taiwan |
|
Frequency modulation method |
Broad spectrum frequency modulation (FHSS) or fixed frequency, software adjustable |
|
RF output |
20-33dBm adjustable; 50 Euro Load |
|
Inventory label peak speed |
>800 tags per second |
|
Tag cache area |
800 tags @ 96 bit EPC |
|
Label RSSI |
support |
|
Antenna connection protection |
support |
|
Environmental temperature monitoring |
support |
|
Number of antennas |
4 or 8 SMA antenna interfaces |
|
Standard interface |
RS232、RS485、TCP/IP; |
|
Optional interface |
Wiegand 34, 26, CAN bus, WIFI, Bluetooth, GPRS (3G/4G) |
|
Communication speed |
Serial port speed 9600-11520bps, RJ45 10/100Mbps |
|
Reliable firmware upgrade |
Scalable upgrade mechanism |
|
General Purpose Input/Output (GPIO) |
4 optical isolated inputs and 4 optical isolated outputs |
|
Application software interface |
Provide API development packages and application routines |
|
Electrical performance |
|
|
CPU processor |
Adopting ATMEL AT91SAM9260 CPU and ARM926EJ-S core processor; |
|
Storage unit |
32MB SDRAM, FLASH storage, 128M * 8bits NandFlash (K9F1G08U0B) |
|
Operating frequency |
Equipped with 8Kb instructions and data cache, with a main frequency of 190MHz and a runtime performance of up to 210MIPS; |
|
Operating system support |
Linux2.6.30 |
|
Tag operation performance |
|
|
Reading distance |
9dBi antenna configuration, typical reading distance 15-25 meters (depending on tag performance) |
|
Air interface protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
|
Maximum receiving sensitivity |
-82 dBm; Maximum return loss: 10 dBm |
|
Mechanical and electrical performance |
|
|
Size |
205 (length) * 101 (width) * 34 (height) mm |
|
Power Supply |
Equipped with a power converter with 220V AC input and+12V/3A DC output |
|
RF output interface |
SMA type connector |
|

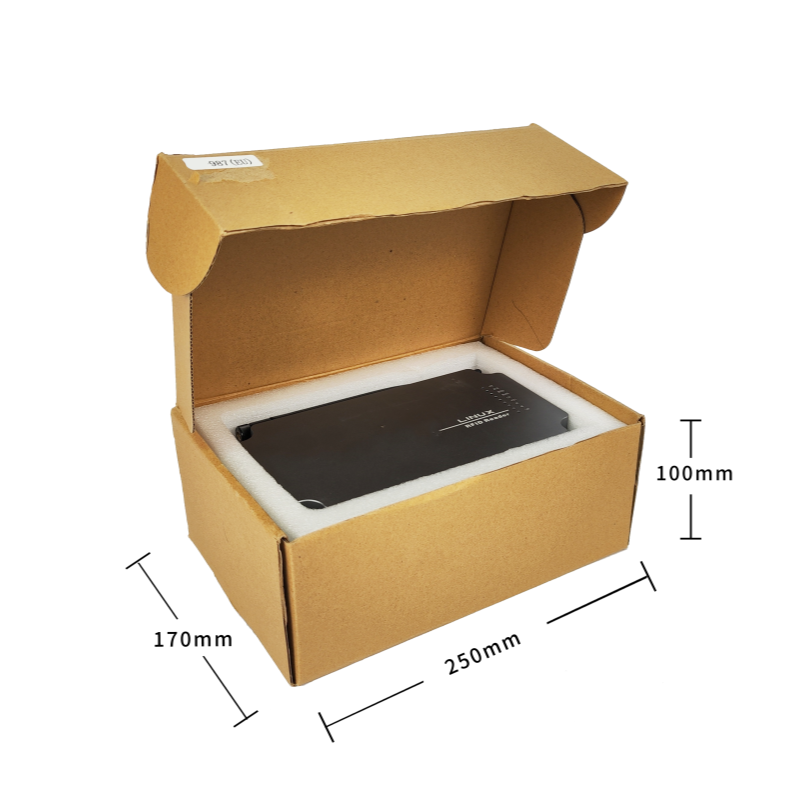

Weight after packaging |
1.5KG |
|
Humidity |
5% to 95%, non condensing |
|
Protection level |
IEC IP53 |
|
Working temperature |
-20 ºC to +70 ºC |
|
Storage temperature |
-20°C to 85°C |
