Model: AF-747P

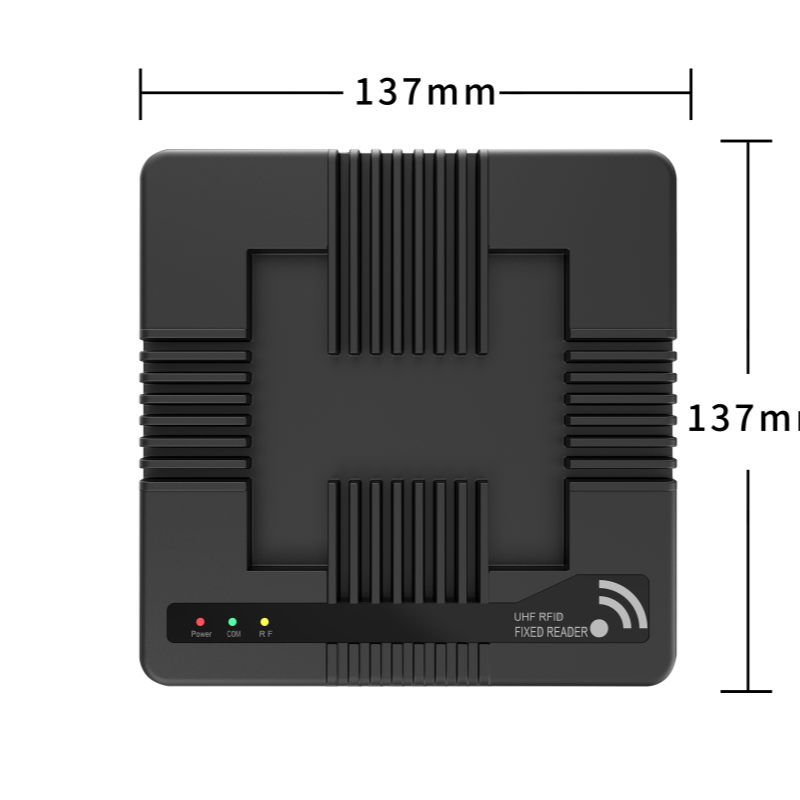

4-Port UHF RFID Fixed Reader AF-747P
$289.00 340.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Protocol support: support VUP protocol, ModbusTCP, ModbusRTU protocol, TCP/UDP protocol.
2. Communication mode: support for 100 megabit network port communication, WiFi/4G (optional), support for 232/485 communication, support for Wiegand communication.
3. Communication interface (GPIO logic control): 4-way output control (support DC24V/2A, AC124V/2A), 2-way input control; l Antenna interface: support 4-way output control (support DC24V/2A, AC124V/2A), 2-way input control.

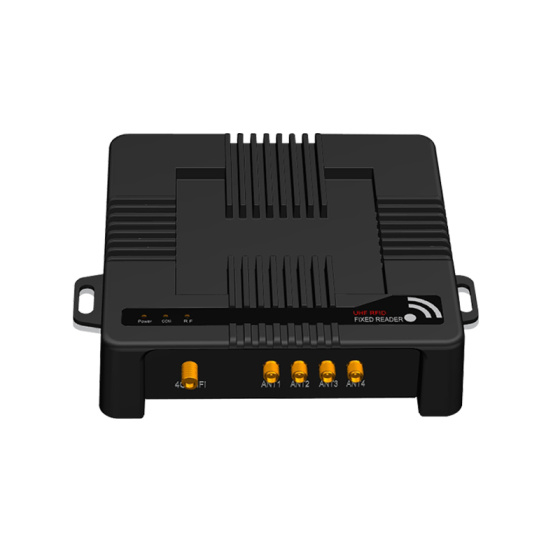

4. Antenna interface: support 4-way RFID external SMA antenna interface; independent WIFI and 4G antenna interface (WiFi/4G optional).
5. Temperature protection: support temperature compensation function in very cold areas (optional).
6. Working status: a number of LED using different flashing state, and different buzzer ringing mode, to facilitate the user to control the product's working status.
Detail
|
Procurement code (product model) |
AF-747P |
|
Performance Parameters |
|
|
RF Core Chip |
Impinj-E710 |
|
Air Port Protocol |
EPC Global UHF class1 Gen2/ISO 18000-6C/ISO 18000-6B |
|
Operating Frequency |
902-928MHz or 865-868MHz |
|
Output Power |
33dBm±1dBm |
|
Output Power Adjustment |
1dBm step (set via VANCH software) |
|
Receiving Sensitivity |
<-85dBm |
|
Peak speed of disc memory tag |
＞800 times/second |
|
VA-9595F (Far Field Antenna) |
13～33dBm: distance 60-10000mm (related to reader parameter configuration, antenna gain, tag type) |
|
VA-9595N (Near Field Antenna) |
13～33dBm: distance 20-350mm (related to reader parameter configuration, antenna gain, tag type) |
|
Write Distance |
0~10m (related to reader parameter configuration, antenna gain, tag type) |
|
Tag RSSI |
Support |
|
Antenna connection protection |
Support |
|
Support Area |
U.S., Canada and other regions compliant with U.S. FCC Part 15 specifications |
|
Number of Antennas |
Europe and other regions compliant with ETSI EN 302 308 specifications |
|
Communication Interface |
China, India, Japan, Korea, Malaysia, Taiwan |
|
Communication Protocol |
4 external SMA antenna ports |
|
WiFi (optional) |
RJ45, RS232, RS485, Wiegand26/34 interfaces |
|
Heater (optional) |
ModbusTCP, ModbusRTU, TCP/UDP |
|
Communication rate |
Support IEEE 802.11 n/b/g |
|
Operating status |
Low-temperature automatic heating (-5ºC) option (according to the project site environment to determine) |
|
Reliable firmware upgrade |
Expandable upgrade mechanism |
|
General purpose inputs/outputs (GPIO) |
2 inputs and 4 outputs |
|
Application software interface |
Provide API development kit and VC and VB, Java application routines |
|
Test Software |
VANCH VUPv1.0 |
|
Mechatronic parameters |
|
|
Dimension |
138(L)*138(W)*38(H)mm |
|
Power supply |
Equipped with 220V AC input, +12V/3A DC output power converter |
|
RF Output Interface |
SMA type connector |
|
Power Consumption |
Maximum power 3W, maximum starting current 1A |
|
Weight |
Approx. 1.32kg (complete set) |
|
Humidity |
5% to 95%, non-condensing |
|
Protection Rating |
IEC IP51 |
|
Operating Temperature |
-20 ºC ~+85 ºC |
|
Storage Temperature |
-40°C ~ 85°C |
|
Compliance Certificates |
FCC、CE |
You might also like

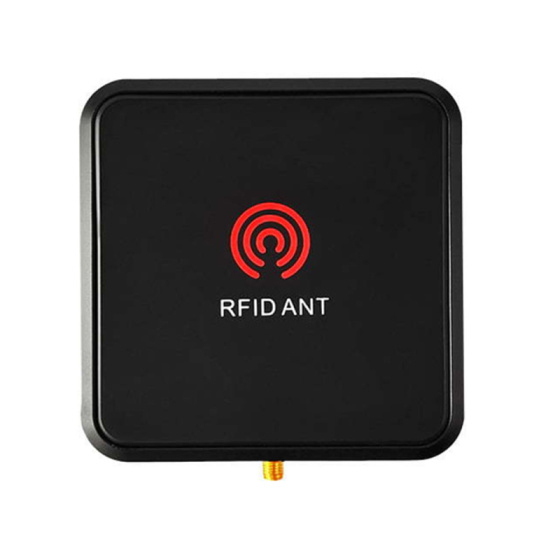

Industrial Reader Farfield/nearfield antenna AA-9595F/AA-9595N
