Model: AG-M106

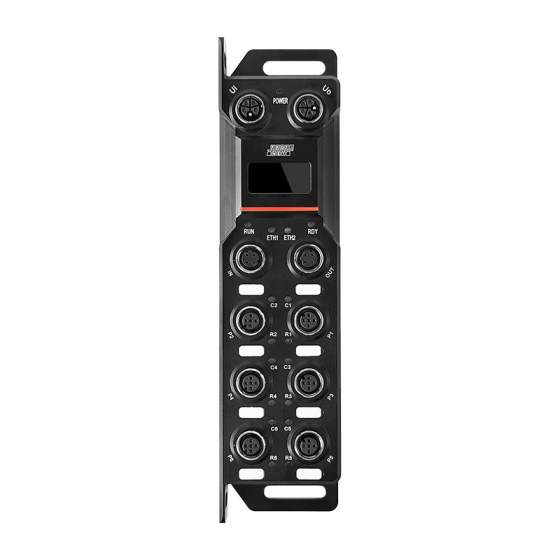

AG-M106 Industrial reader gateway
$450.00
暂无数据
Interface:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
(1) Protection level: IP67 conforms to harsh industrial production line environment, and multi-directional installation mode;
(2) Support Siemens (PLC) Profinet protocol adaptive connection communication
(3) Full support for electronic tags that comply with ISO 15693/ 14443A or ISO1008-6C standards (UHF or HF can be selected according to the project).
Detail
|
Product Model (Order Code) |
AG-M106 |
|
Performance |
|
|
master agreement |
Profinet |
|
RF radio frequency |
UHF or HF |
|
Air interface protocol ( optional) |
ISO 15693 / ISO 14443A or ISO1008-6C |
|
Operating frequency (optional) |
13.56MHz or 865~868MHz, 902~928MHz |
|
RF interface |
6 channels (baud rate adaptive) |
|
RF interface protocol |
VUP protocol |
|
Network communication interface |
2 way |
|
Power supply |
2 way (one in and one out) |
|
communication rate |
Adaptive baud rate |
|
working status |
LED lights indicate card reading and connection status |
|
Display shows connection status, firmware version |
|
|
Reliable Firmware Upgrades |
Scalable upgrade mechanism |
|
application software interface |
Provide API development kit and C , C# and Java application routines |
|
mechanical and electrical properties |
|
|
size |
240*60*30mm |
|
power supply |
Working voltageDC24V |
|
power consumption |
The maximum power consumption is 30.5W, |
|
Communication Harness |
M12 Female Harness |
|
weight |
about (full set) |
|
humidity |
5% ~ 95%, non-condensing |
|
degree of protection |
IEC IP67 |
|
Operating temperature |
- 20ºC ~ + 70ºC |
|
storage temperature |
- 40ºC ~ + 85ºC |
