Model: AI-IR108

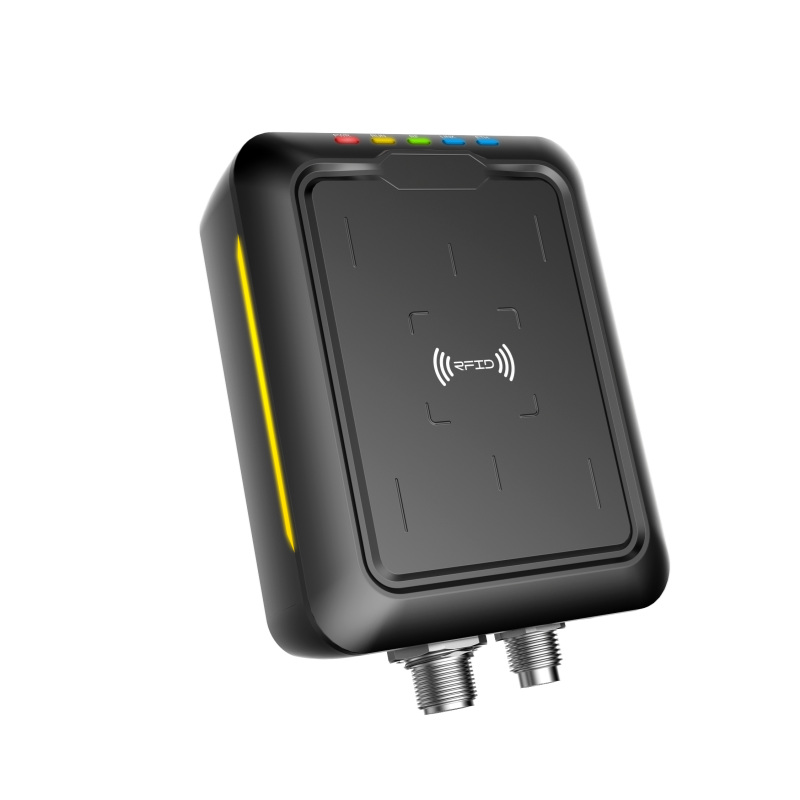

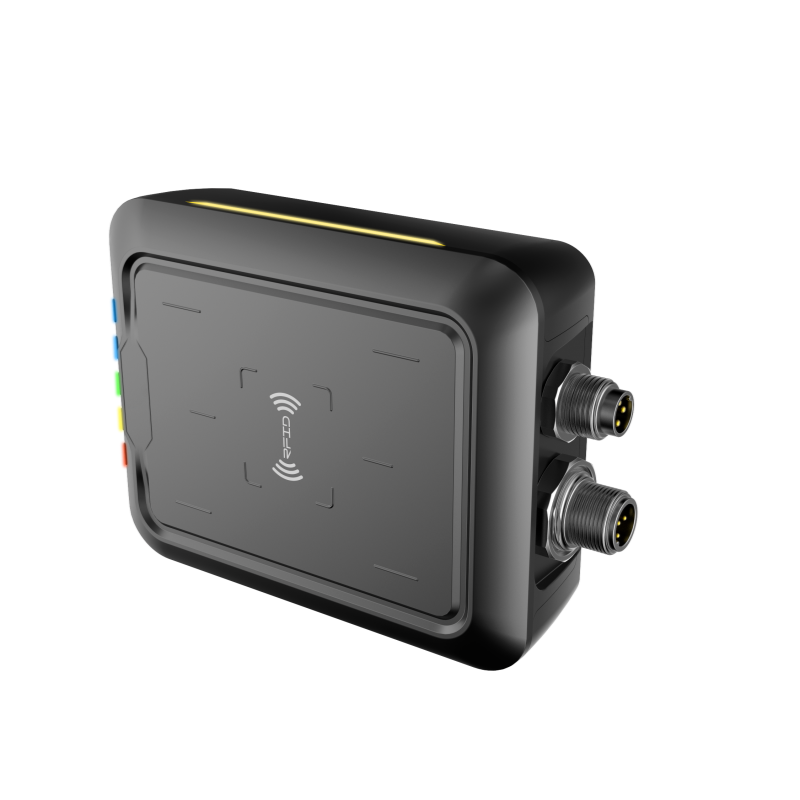

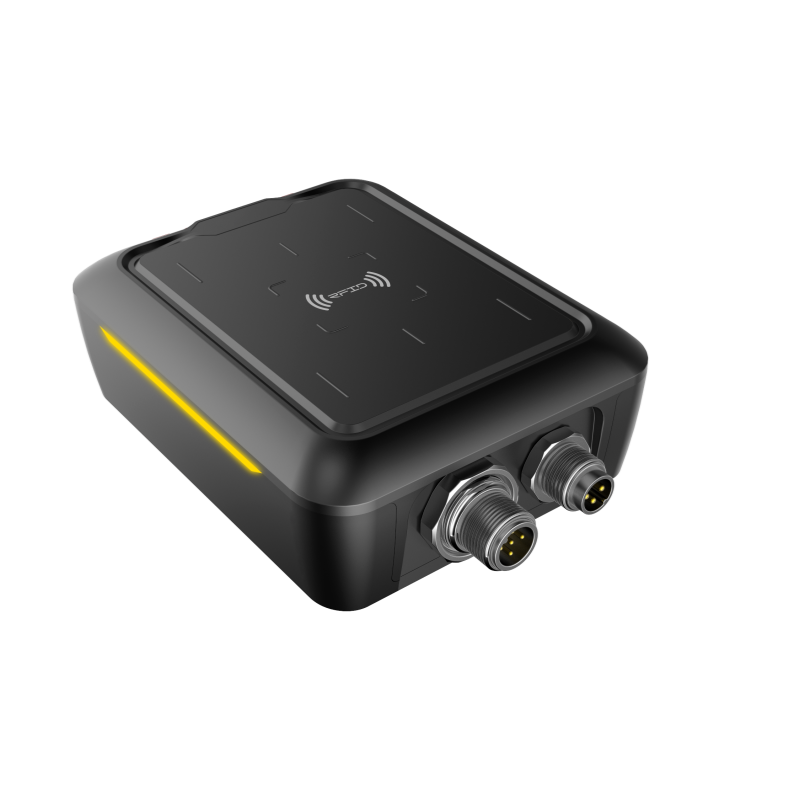

UHF RFID Industrial reader AI-IR108
$171.00 180.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1.Industrial-grade design appearance patent, IP67 protection level, can adapt to harsh environments such as oil, dust, and humidity;
2.All industrial-grade electronic components are used, with built-in filters and isolation modules to resist interference, ensuring stable and reliable quality;
3.The RF module uses the outstanding American Impinj E310 chip, with extremely high sensitivity and higher reading rate;
4.Multi-protocol, multi-interface, multi-cascade, multi-mode, and multi-function;
5.Modbus directly connects to PLC to achieve rapid RFID acquisition; supports low-threshold secondary development.
Detail
|
Model |
AI-IR108 |
|
Performance |
|
|
RF module |
AM-18E/AM-M18 (RF chip E310 or Fudan Micro) |
|
Air interface protocol |
RAIN RFID / Compliant with ISO 18000-6C and EPC Global Gen2v2 regulations |
|
Frequency range |
902~928MHz or 865~868MHz |
|
RF output power |
0~27dBm±1dBm |
|
Receiver sensitivity |
-75 dBm; |
|
Output power |
0-26dBm |
|
Maximum read rate (tag/second) |
250 |
|
Read distance |
0~35cm (related to the reader parameter configuration, antenna gain, and tag type) |
|
Write distance |
0~35cm (related to the reader parameter configuration, antenna gain, and tag type) |
|
Number of antennas |
1 built-in ceramic antenna |
|
Firmware upgrade |
Expandable upgrade mechanism |
|
Application software interface |
Provide API development kit and C and Java application examples |
|
Communication interface |
RS485, RJ45 options |
|
Communication rate |
Serial port rate 9600 ~ 115200bps Network port rate 10/100Mbps |
|
Communication protocol |
Modbus TCP/RTU, VUP protocol |
|
Signal indicator |
Power indicator PWR (red) Operation indicator RUN (orange) Card reading indicator RF (green) Network connection data transmission indicator Link (blue) Serial port connection data transmission indicator ETH (blue) Side light bar (card reading flashes green, standby red) |
|
Mechanical and electrical performance |
|
|
Protection level |
IP67 |
|
Typical power consumption (watts) |
＜4.5W |
|
Operating voltage |
DC 9~24V or POE power supply |
|
Operating status display |
LED indicator |
|
GPIO |
1 trigger, 1 relay |
|
Product size |
100*80*35mm |
|
Casing material |
ABS+epoxy resin |
|

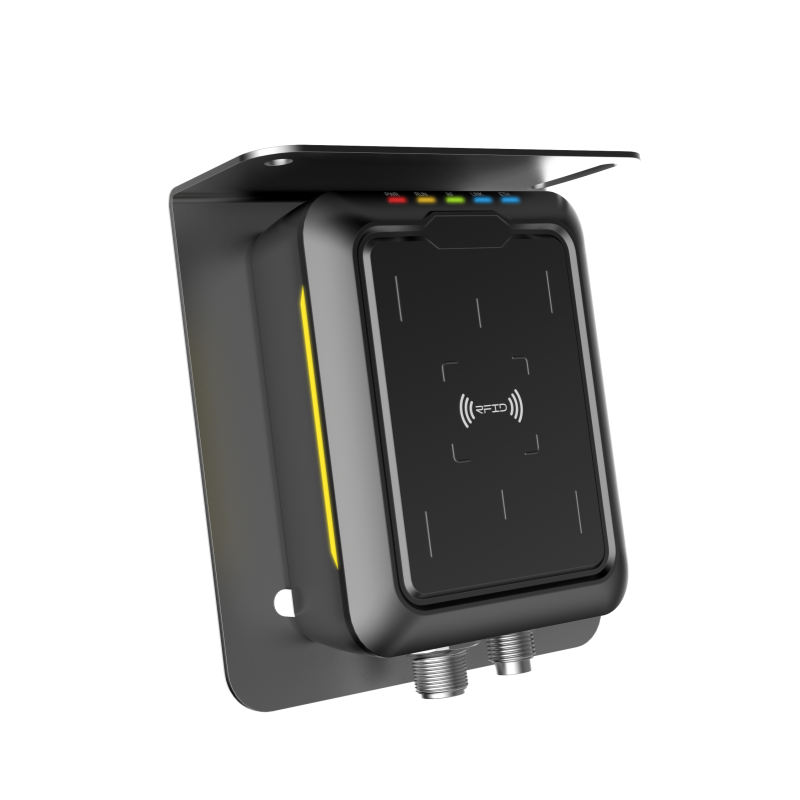

Mounting bracket material |
Iron galvanized or powder coating process |
|
Weight (k) |
Net weight 205g; including packaging 360g |
|
Wire harness connector |
M12-A type 8-pin female connector (network port/RS232), M12-A type 5-pin female connector (RS485) |
